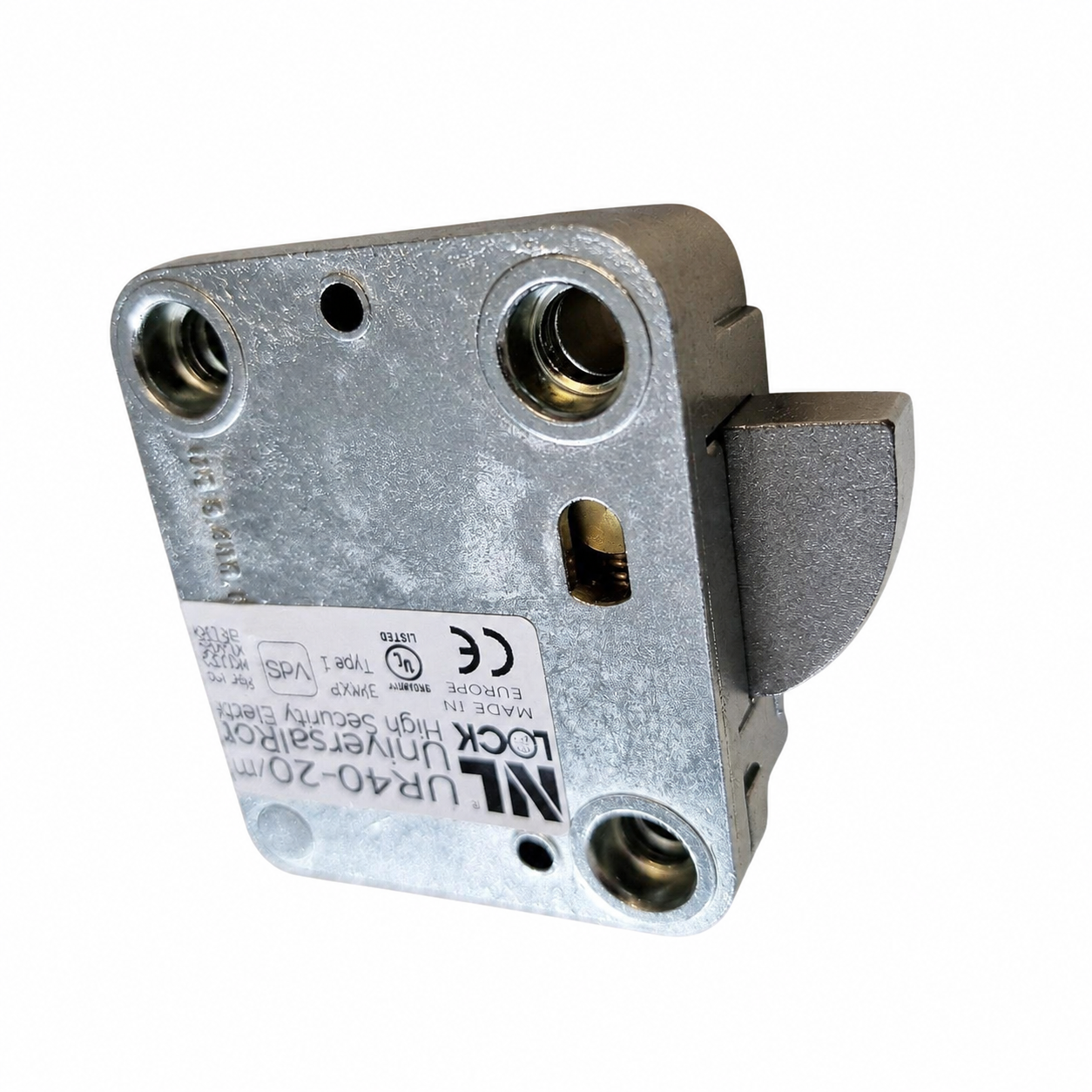

ELECTRONIC LOCK Universal Rotobolt UR40-20

Lock4Safe Universal Rotobolt UR40-20 Rotobolt / Swingbolt electronic lock VdS Class 2.
Basic electronic safe lock with a swingbolt. The semi-automatic bolt is automatically opened and closed by moving the boltwork.

UR 40-20

• Opening: Semi-automatic
• Closing: Automatic
• Blocking: Motor
• Mounting dimensions: Standard - 2-point bolt-side mounting
• Lock is shorter, so it is no longer in the manipulable area.
• Possible mounting positions: 4
• 1 Master code / 1 User code

EN 1300 Class B

VdS Class 2

UR 40-20 can be used with various analogue input units such as:

• Alpha
• Bravo
• Delta
• EuroClass
• Echo
• EuroLine Series
• ST Series
• Premier
• T6530 all versions

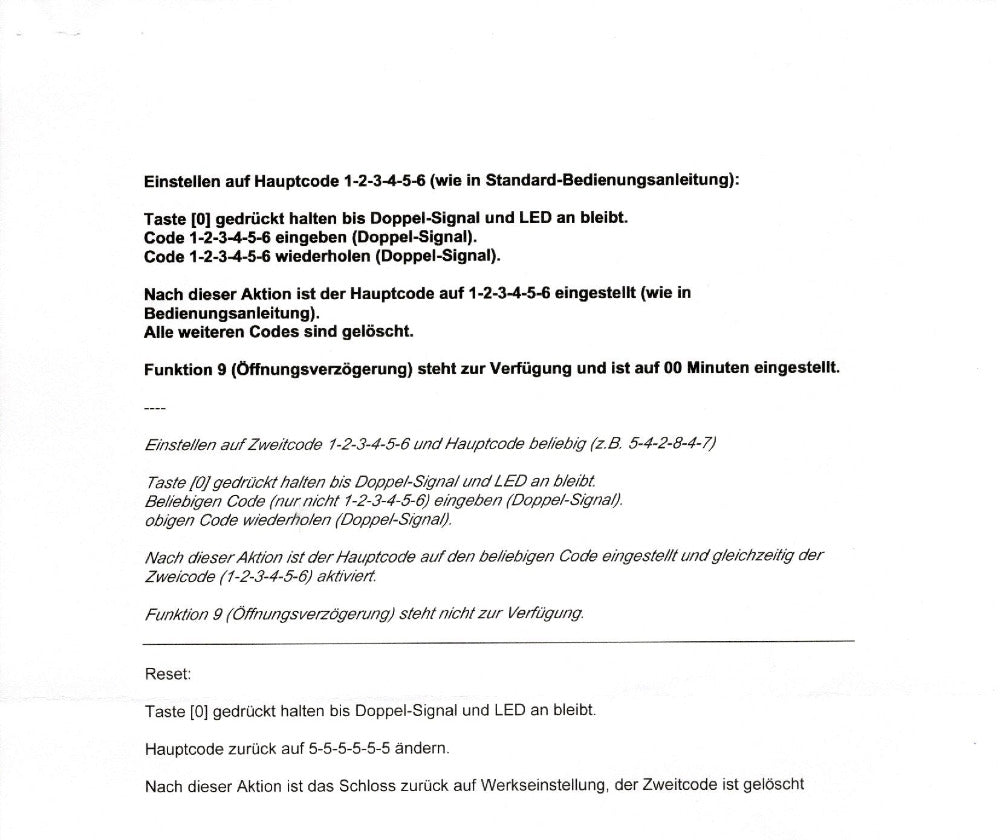

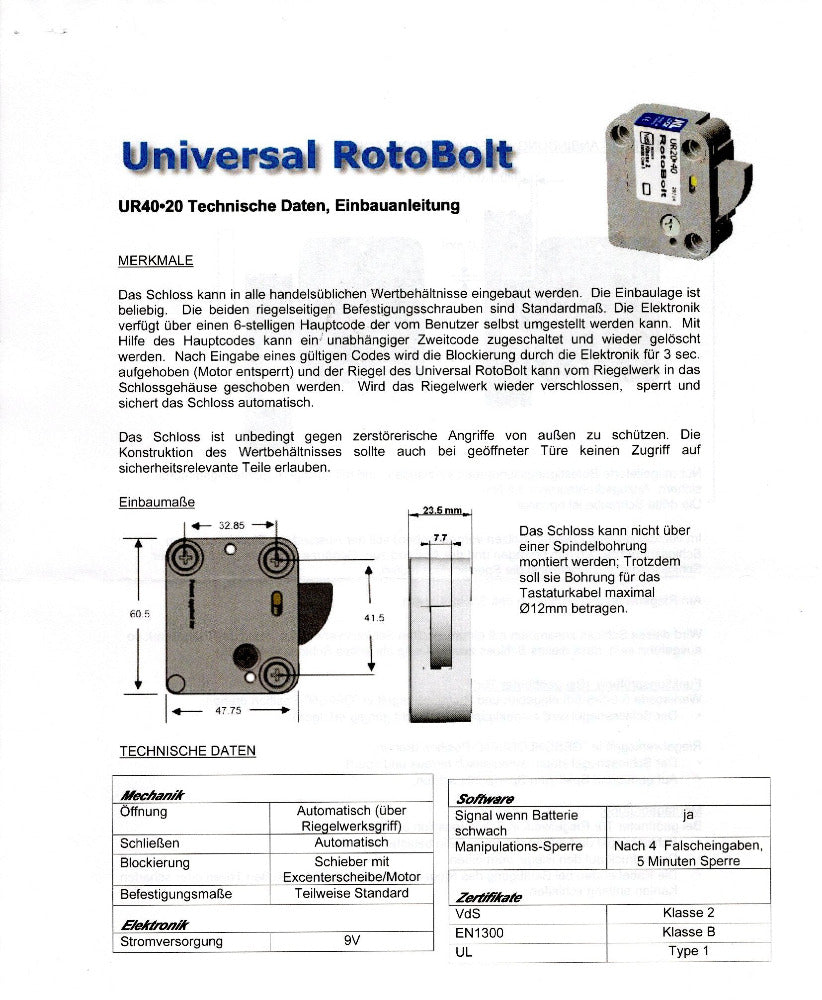

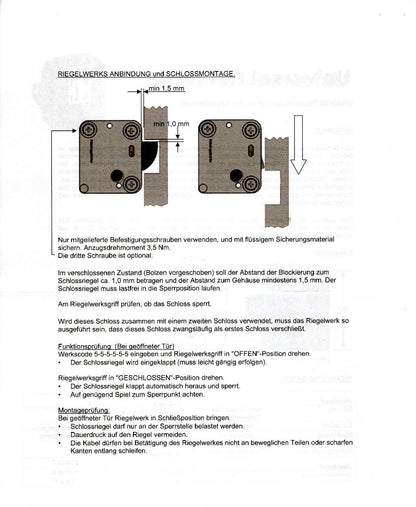

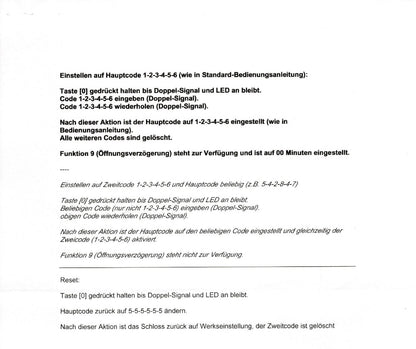

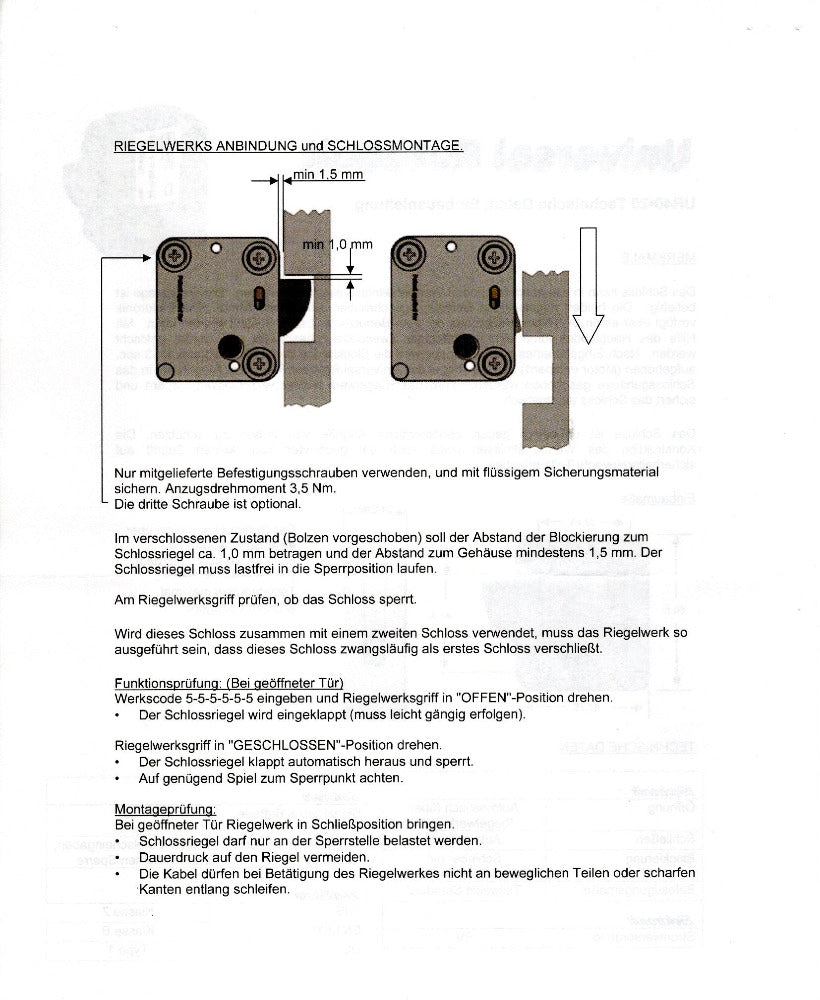

For your information, please find the installation and operating instructions for this lock attached.

NOTE:

Suitable for installation in safes / gun cabinets with a boltwork with ONE standard locking point and fixed boltwork overlap!

NOTE:

DO NOT USE in safes / gun cabinets with TWO locking points, as one of the two locking points would have to be deactivated / modified, which constitutes an impermissible technical alteration (loss of certification). For safes with two locking points, always use deadbolt locks, which you can also find in our product range.
